T20

T20

The most compact Truxor for light-duty aquatic work and easy access operations.

Request a Quote View Attachments

Lightweight amphibious chassis

Single hydraulic outlet

Quick coupler system

Automatic safety shutdown

T20

Overview

Compact performance for precise environmental maintenance

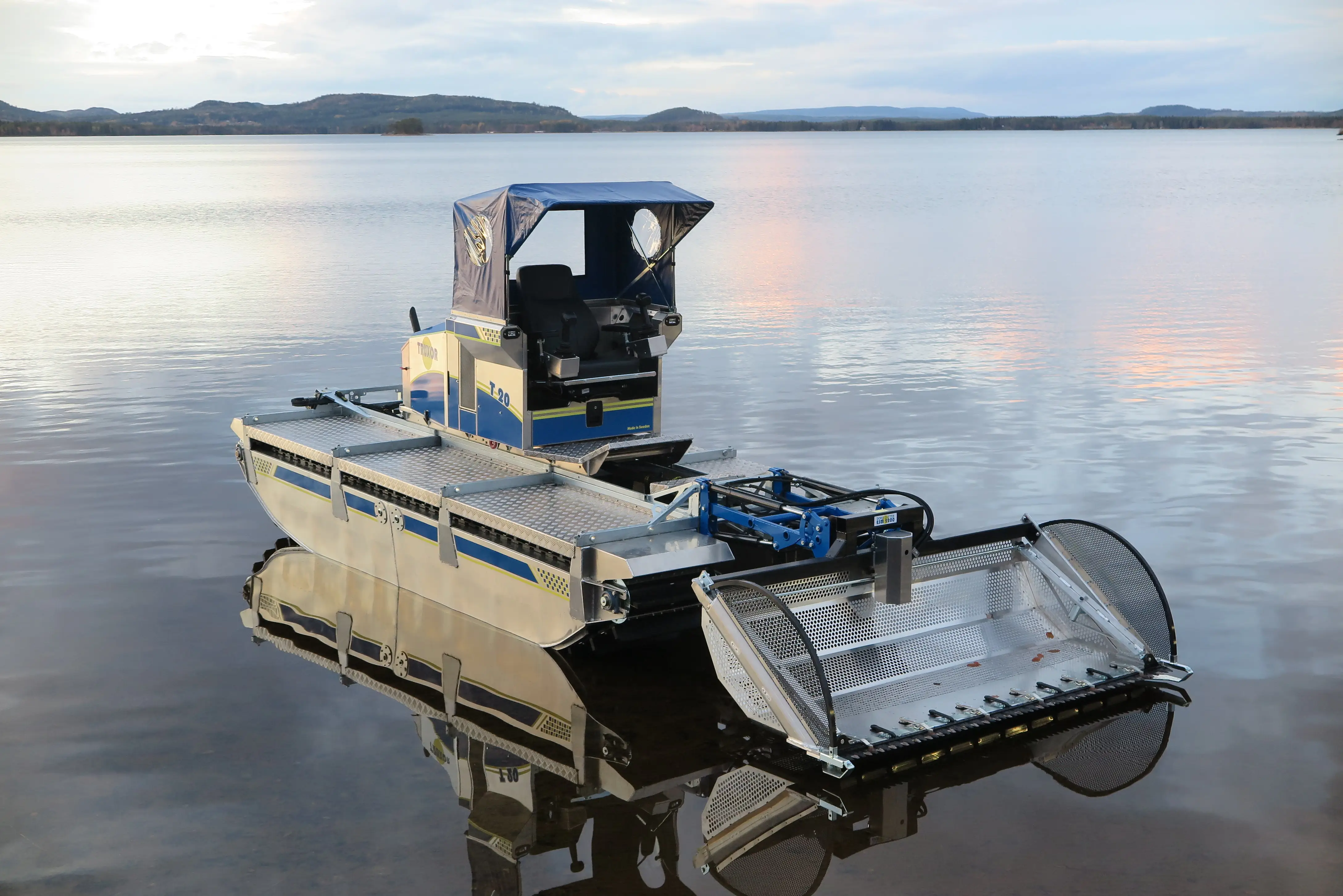

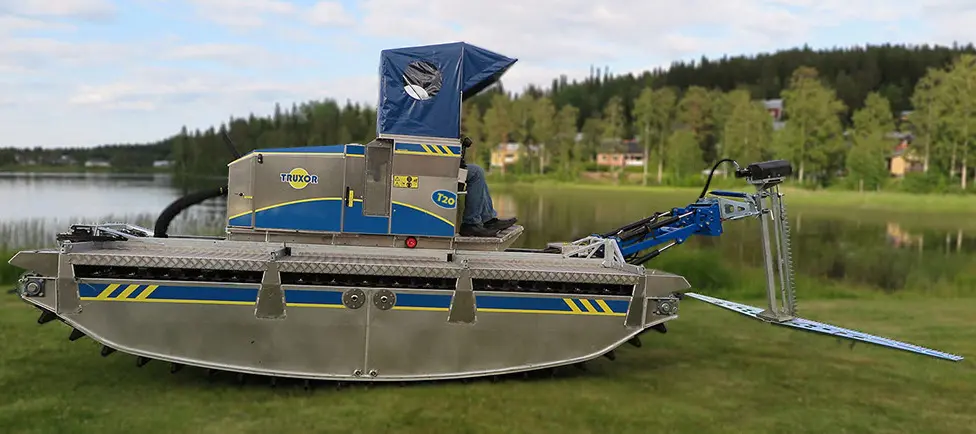

The Truxor T20 is a compact amphibious machine designed for light-duty aquatic and environmental maintenance work in shallow and sensitive areas. It features a single hydraulic outlet for simple tool operation, making it ideal for tasks such as reed cutting, material collection, and basic vegetation management. The T20 is compatible with a wide range of Truxor attachments but is not intended for high-power hydraulic tools such as dredge pumps or heavy-duty material handling equipment.

Explore Truxor machines

T-Series Platform

Shared architecture across the range.

The Truxor T-series is built as a single, integrated platform for efficient water and wetland management. Designed for versatility across demanding environments, it combines mobility, power, and precision tooling in one machine base used across the full range.

T-Series Brochure

Core Systems

Chassis & Construction

High-strength galvanised steel chassis with reinforced rubber tracks and saltwater-resistant aluminium pontoons for durability and stability in marine environments.

Hydraulics

Thermostatically controlled hydraulic system maintains stable performance through regulated oil temperature. Integrated safety systems provide automatic shutdown, slope warnings, and spill protection.

Operator Systems

Operator Environment

Ergonomic operator layout with adjustable heated seat, folding cab, and adjustable controls. Lockable retractable storage increases onboard usability.

Digital Systems

Digital screen provides engine data, diagnostics, and adjustable functions including speed, belt balance, hydraulic flow, and emergency operations.

Operational Systems

Tool Handling

Quick coupler X4 system enables rapid tool changes, while precise hydraulic control and a tight turning radius provide exceptional manoeuvrability in confined working areas.

Lighting & Support

4 LED work lights (2 front, 2 rear) improve visibility and safety in low-light conditions. System improvements support servicing and maintenance efficiency.

Applications

Built for every environment.

  • Reed cutting
  • Aquatic vegetation management
  • Material collection
  • Wetland maintenance
  • Digging and excavation work
  • Contaminant and flotsam removal
  • Shallow water operations
  • Habitat shaping and restoration
See the Truxor in action
Truxor in action

Attachments

One Machine. Many tools.

The T20 is compatible with a wide range of Truxor attachments

Specifications

Technical details.

Engine Kubota D1305 E4B-EU Step V / EPA Tier 4 diesel engine (3-cylinder 24.8 kW at 2600 rpm, 80 Nm torque at 1700 rpm)
Fuel tank 35L diesel tank
Electrical system 12V battery (40A / 45Ah)
Hydraulic system Max flow 120 L/min hydraulic power 14.1 hp
Hydraulic outlet 1 140 bar working pressure 0–20 L/min adjustable flow
Hydraulic tank 19L (33L system capacity)
Control system CAN bus control of all valves
Weight 1350 kg
Dimensions Length 4700–5030 mm Width 2080 mm, Height 2020–2600 mm
Speed 0–100 m/min
Lifting capacity 250 kg
Compare T-Series Machines
Truxor being shipped

Support

We are here to help.

Every machine is backed by training, delivery support, warranty coverage, and ongoing servicing to keep you operational in the field.

  • Nationwide delivery
  • Operator training included
  • 24-month / 1000-hour warranty
  • Servicing & support network
