Attachment

Digging and Excavation

Doro Digger is a high-strength excavation and tool mounting system designed for digging, dredging, cutting and multi-tool aquatic operations.

Doro Digger

Doro Digger

Doro Digger

The Doro Digger is an excavation aggregate and combined mounting system for other tools. The digging arm is made of high-tensile steel and has built-in brackets for attaching dredge hoses and hydraulic tubing. Designed to maximise lifting height, digging depth and reach. Includes swing system with hydraulic cylinders for high stability and semi-automatic quick bracket DM X3 for fast tool changes.

Compatible Machines

T50 T30 T20 5045 5000
Part No 77-25700
Maximum Excavation Depth 3.0m
Maximum Lifting Height 2.9m
Maximum Reach (Radius) 4m
Maximum Reach (Diameter) 8m
Maximum Turning Radius 180°
Maximum Depth (Outriggers) 1 m
Operating Note If water is less than 0.1 m deep, outriggers can be removed
Buoyancy of Outrigger Pontoons 2 x 130kg
Total Weight 357kg
Excavation Aggregate Weight 226kg
Outrigger Pontoons Weight 131kg

Doro Digger Accessories

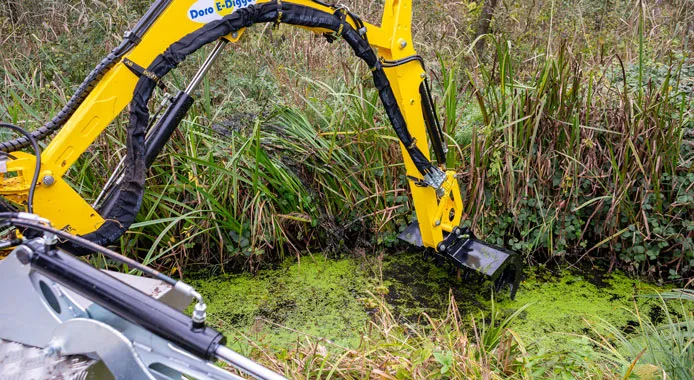

Digger Buckets

Digger Buckets

Designed for underwater excavation work in root-heavy sediments. Made from high-tensile steel with cutting tooth profile.

Compatible Machines

T50 T30 T20 5045 5000

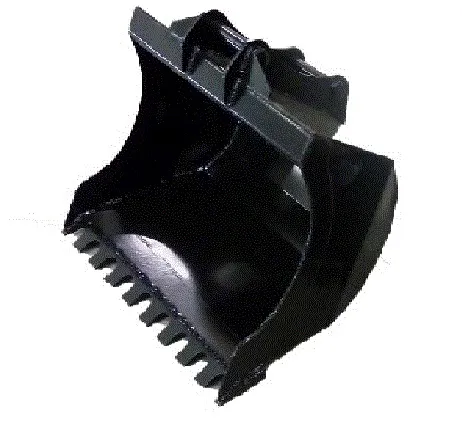

Bucket 60 litre
Bucket 60 litre
Part No 77-16800
Volume 60 litres
Weight 37kg
Bucket 30 litre
Bucket 30 litre
Part No 77-16900
Volume 30 litres
Weight 24kg
Excavating Rake
Excavating Rake
Part No 77-17000
Volume 70 litres
Weight 27kg

Attachments

The Doro Digger can also be used with

Need help choosing the right attachment?

Tell us about your waterway, vegetation or maintenance requirements and we'll recommend the most suitable Truxor attachment and machine configuration.
